The SIPLUS HCS716I heater control system was developed as a cost-optimized controller of heat emitter arrays in thermoforming machines. It is suitable for all generally available radiation devices such as quartz, quartz material, ceramic, halogen and infrared radiation devices.
The SIPLUS HCS716I can be used wherever low-cost, resistive loads of small to medium output require switching in an industrial environment.
The SIPLUS HCS716I family comprises three racks and three power output modules.
Rack mounting frame without flange
LA716I power output module
The SIPLUS HCS716I heater control system is used, for example, to switch the small and medium output heat emitter arrays in thermoforming machines, drying ovens and packaging machines.
The SIPLUS HCS716I is a distributed I/O unit (slave) that communicates over the PROFIBUS DP fieldbus with a higher-level control system (master) such as SIMATIC S7/SIMOTION.
Climatic ambient conditions | |
Operating temperature | |
| 0 ... 55 °C |
| 95 % |
| ≤ 10 K/h |
Storage temperature | |
| -40 ... 70 °C |
| 95 % |
| ≤ 20 K/h |
Air pressure during operation | |
| 860 hPa (= 1 500 m above sea level) (reduced cooling performance at lower air pressure) |
| 1 080 hPa |
Air pressure during storage | |
| 660 hPa (= 3 500 m above sea level) |
| 1 080 hPa |
Ventilation | Self ventilation or forced ventilation |
Mechanical ambient conditions | |
Vibration during operation (stationary use) | IEC 60068-2-6 Test FC (10 cycles per axis) |
| 0.075 mm amplitude |
| 9.8 m/s2 (= 1 g constant acceleration) |
Vibration during transport/storage (in delivery packaging) | IEC 60068-2-6 Test FC (10 cycles per axis) |
| 3.5 mm amplitude |
| 9.8 m/s2 (= 1 g constant acceleration) |
Shock during operation (stationary use) | IEC 60068-2-27 Test EA |
Shock during transport/storage (in delivery packaging) | IEC 60068-2-29 Test EB |
Electromagnetic compatibility (Heating control is installed in control cabinet) | |
Radio interference suppression | EN 61000-6-4 |
Immunity to conducted interference (burst) | EN 61000-4-4 |
| 2 kV with switching network |
| 1 kV with clamp |
Immunity to conducted interference (HF‑irradiation) | EN 61000-4-6: 10 V (0.15 to 80 MHz) |
Immunity to electrostatic discharge (ESD) | EN 61000-4-2 |
| 4 kV |
| 8 kV |
Immunity to high-frequency interference | EN 61000-4-3 |
Immunity to high-energy pulses (surge) | EN 61000-4-5 |
| |
| 1 kV |
| 2 kV |
| |
| 1 kV |
The main components of the SIPLUS HCS716I heater control system are:

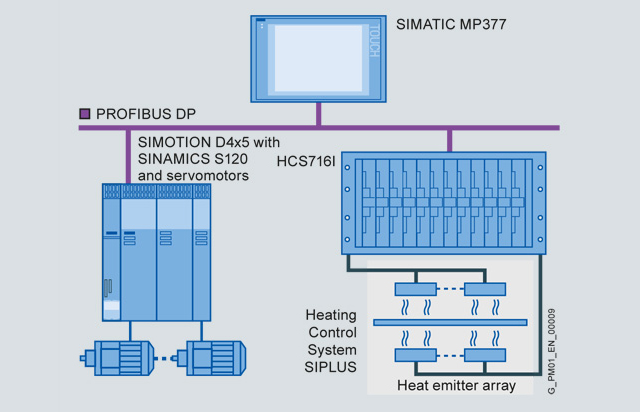

Example of application with SIMOTION, SINAMICS and HCS716I
