HabiTEQ™ - Контроллеры производства General Electric

CTD01 - mini controller USB
  • CTD01 - mini controller USB
  • CTD01E - mini controller USB & ethernet

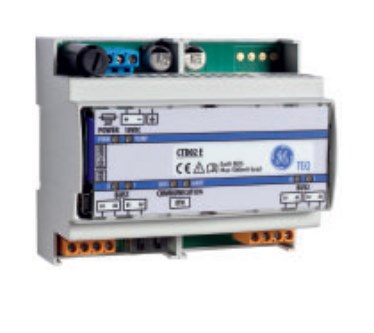

  • CTD02 - full controller
  • CTD02E - full controller USB & ethernet

Файлы

HabiTEQ™ - описание HabiTEQ™ - описание
HabiTEQ™ - Коды для заказа HabiTEQ™ - Коды для заказа
HabiTEQ™ - Компоненты автоматизации HabiTEQ™ - Компоненты автоматизации
The controller is the central brain of the HabiTEQ automation system and delivers the necessary power and data to all the connected modules. The controller is available in 6 different versions to suit your installation size.
The power supply is delivered via a stabilized 18Vdc/2A lead (included). In case of a loss of the supply voltage a built-in back-up memory will save all data for at least 4 years.
Технические характеристики

Controller
CTD01
CTD01E
CTD01E+
CTD02
CTD02E
Power supply
18Vdc / 2A (supplied with controller)
Output BUS (per BUS)
13.8Vdc / 200mA
13.8Vdc / 200mA
13.8Vdc / 400mA
13.8Vdc / 500mA
13.8Vdc / 500mA
Power consumption
4W CTD01 /CTD01E / CTD01E+
6W CTD02 / CTD02E
Approx. number of modules
12 to 15
30
35 per BUS
35 per BUS
Number of BUS connections
1
2
Logical functions
    Digital logical functions - (AND/OR/ IF.. THEN.. ELSE ) ; Analogue logical functions (x, / , + , -, <, >, = )
Protection - fuse
1 AF
Fitting
DIN-rail
Dimensions
4 modules (72mm)
6 modules (107mm)
Built-in communication
USB
USB & ethernet
USB
USB & ethernet
Sequences or scenes/clock
92 /100
Back-up memory time
4 years (on board 2GB -SD Card)

Код Артикул Наименование Описание Заказать
344528 678989 CTD01 Mini controller USB Заказать
344529 678990 CTD01E Mini controller USB & ethernet Заказать
344530 678991 CTD02 Full controller Заказать
344531 678992 CTD02E Full controller USB & ethernet Заказать
344527 679841 CTD01E+ Mini controller USB & ethernet. Extended supply 400mA at 13.8V Заказать
;
